TECHNICAL PARAMETER

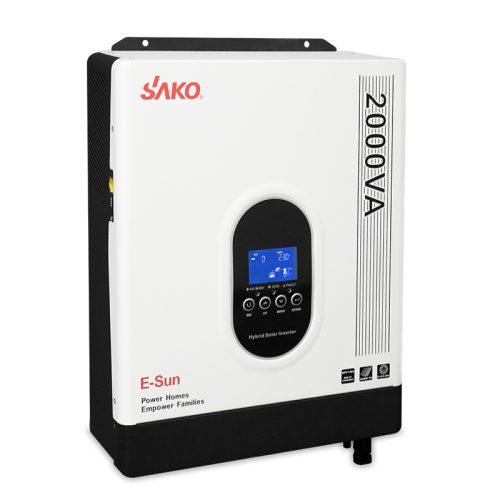

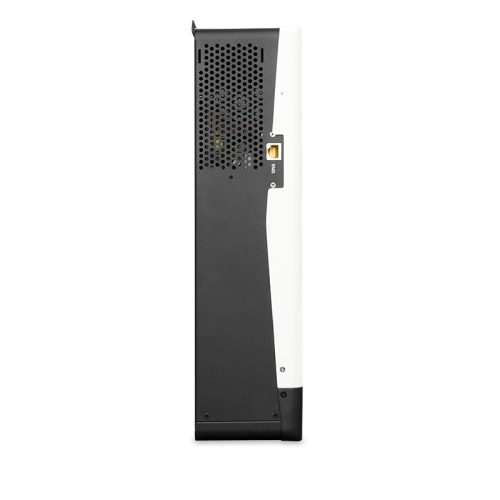

| Model | E-SUN 1.2K | E-SUN 2K | E-SUN 3K |
|---|---|---|---|
| The rated power | 1200VA/1200W | 2000VA/1800W | 3000VA/3000W |
| INPUT | |||
| Voltage | 230VAC | 230VAC | 230VAC |
| Selectable Voltage Range | 170-280VAC (UPS), 90-280VAC (Appliances) | 170-280VAC (UPS), 90-280VAC (Appliances) | 170-280VAC (UPS), 90-280VAC (Appliances) |
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | 50Hz/60Hz (Auto sensing) | 50Hz/60Hz (Auto sensing) |
| OUTPUT | |||
| AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | 230VAC ± 5% | 230VAC ± 5% |
| Surge Power | 2400VA | 4000VA | 6000VA |
| Power factor | 1.0 | 0.8 | 1.0 |
| Efficiency(Peak) | ＞92.5% | ＞94% | ＞94% |
| Transfer Time | 10ms (UPS), 20ms (Appliances) | 10ms (UPS), 20ms (Appliances) | 10ms (UPS), 20ms (Appliances) |
| Wave form | Pure sine wave | Pure sine wave | Pure sine wave |
| No Load Power Consunmption | ＜23W | ＜35W | ＜35W |
| BATTERY | |||
| Battery voltage | 12VDC | 12VDC | 24VDC |
| Low battery alarming voltage | 11.0VDC | 11.0VDC | 22.0VDC |
| Low battery cut off protection voltage | 10.5VDC | 10.5VDC | 21VDC |
| Low battery recovery voltage | 11.5VDC | 11.5VDC | 23.0VDC |
| Floating Charge Voltage | 13.5VDC | 13.5VDC | 27VDC |
| Overcharge Protection | 16.0VDC | 16.0VDC | 32VDC |
| MPPT SOLAR CHARGER & AC CHARGER | |||
| Maximum PV Array Power | 800W | 2000W | 3000W |
| MPPT Range Operation Vol | 20-100VDC | 50-430VDC | 50-430VDC |
| Maximum PV Array Open Circuit Vol. | 120VDC | 450VDC | 450VDC |
| Number of MPPT trackers / Max output current | 50A | 80A | 80A |
| Maxmum AC Charge Current | 50A | 60A | 60A |
| Maxmum Efficiency | 98% | 98% | 98% |
| BEST PANEL CONFIGUTATION | |||
| Maximum PV Array Power | 800W | 2000W | 3000W |
| Best Panel configuration | 600W 1PCS in 1 S | 600W 2-4 PCS in 1 S | 600W 2-5 PCS in 1 S |
| CHARACTERISTIC | |||
| Display | LCD | LCD | LCD |
| Communication Interface | W/O | RS485(BMS) communication port | RS485(BMS) communication port |
| Parallel Capabillty | W/O | W/O | W/O |
| PHYSICAL | |||
| Packing size, D*W*H(mm) | 347mm*247mm*103mm | 473*391*194mm | 473*391*194mm |
| N.W. kg | 3.3Kg | 5.0Kg | 5.5Kg |
| G.W. kg | 4.1Kg | 6.0Kg | 6.5Kg |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature Range | 0°C to 55°C | ||
| Storage Temperature | -15℃-60℃ | ||
