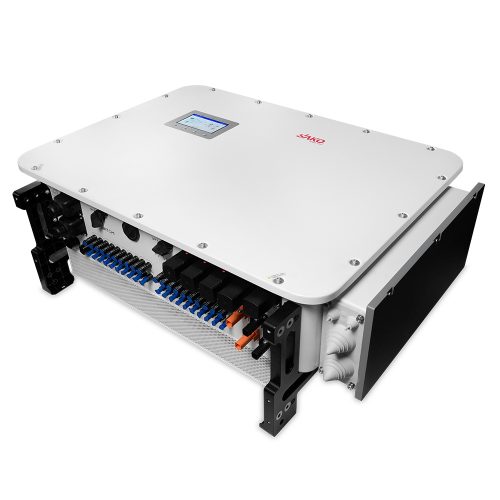

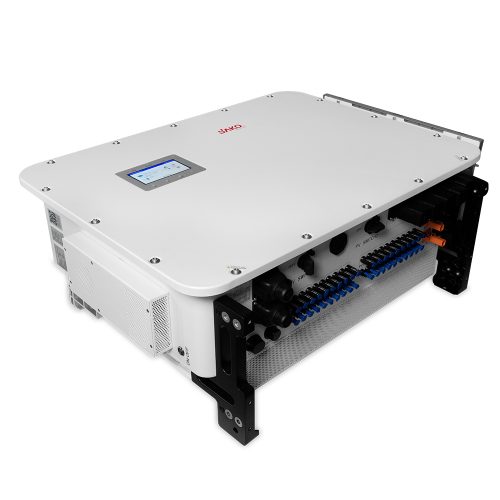

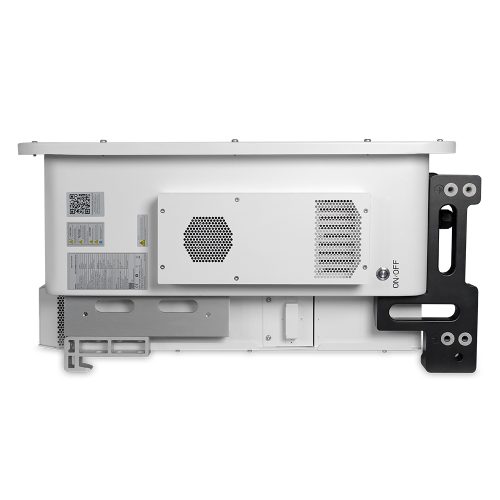

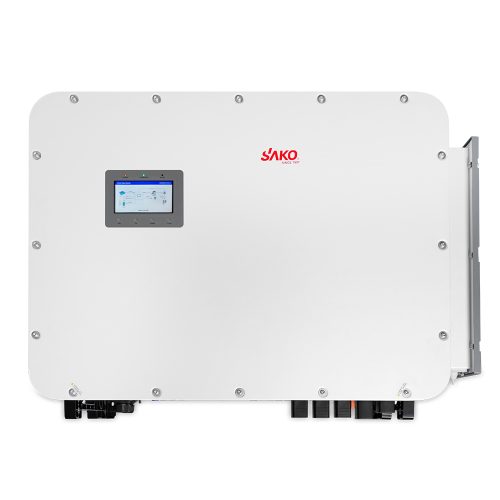

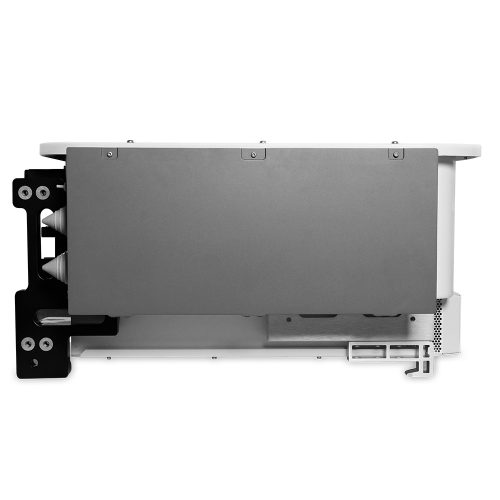

IP66 SUNIN-80KM10-H1P3 Hybrid Inverter

Features:

Supports up to 2x rated PV input, maximizing solar energy utilization
Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads
Supports both DC and AC coupling, for ﬂexible retroﬁts and system expansions
Achieves on-and oﬀ-grid transitions in less than 10ms, ensuring an uninterrupted power supply
Smart remote control, AI optimisation, and instant troubleshooting – all in one platform
Supports multi-unit parallel operation up to 1.25MW
(Solis STS cabinet recommended for systems over 6 units)

Send Inquiry Chat Now Download

Description
Reviews (0)

IP66 SUNIN-80KM10-H1P3 Hybrid Inverter

Models	SUNIN-80KM10-H1P3-EU		SUNIN-100KM10-H1P3-EU		SUNIN-125KM10-H1P3-EU
Input DC (PV side)
Recommended max. PV array size	160 kW		200 kW		250 kW
Max. usable PV input power		160 kW		200 kW	250 kW
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	150 – 950 V
Max. input current	10×42 A
Max. short circuit current	10×60 A
MPPT number / Max. input strings number	10 / 20
Battery
Battery type	Li-ion
Battery voltage range	300 – 950 V
Max. charge / discharge current	200A/100A+100A
Number of battery ports	2
Max. charge / discharge current of each port	100A
Communication	CAN / RS485
Output AC (Grid side)
Rated output power		80 kW		100 kW	125 kW
Max. apparent output power		80 kVA		100 kVA	125 kVA
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current		121.6 A / 115.5 A	>	151.9 A / 144.3 A	189.9 A / 180.4 A
Power factor	0.99 (0.8 leading – 0.8 lagging) <
THDi	3%
Input AC (Grid side)
Max. input current	250 A
Output AC (Back-up)
Rated output power		80 kW		100 kW	125 kW
Max. apparent output power	75-100K: 1.2 times of rated power, 10 mins; 1.4 times of rated power, 100 s; 1.6 times of rated power, 10 s; 2 times of rated power, 200 ms; 125K: 1.2 times of rated power, 100 s; 1.4 times of rated power, 10 s; 1.6 times of rated power, 200 ms <
Back-up switch time	10 ms
Rated output voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency	50 Hz / 60 Hz <
THDv (@linear load)	2%
Input AC (Generator)
Max. input power		80 kW		100 kW	125 kW
Rated input current		121.6 A / 115.5 A		151.9 A / 144.3 A	189.9 A / 180.4 A
Rated input voltage	3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Eﬃciency
Max. eﬃciency	97.6%
EU eﬃciency	97.2%
BAT charged / discharged to AC max. eﬃciency	97.0%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
Surge protection	DC Type II / AC Type II
Integrated AFCI 2.0		Optional		Optional (Brazil: Yes)	Optional (Brazil: Yes)
Protection class / Over voltage category	I/ DC II, AC III
General Data
Max. allowable phase imbalance (grid & back-up	)			100%
Max. power per phase (grid & back-up)		26.66 kW		33.33 kW	41.66 kW
Dimensions (W × H × D)	1174 × 814 × 400 mm
Weight	170 kg
Topology	Transformerless
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 – 100%
Ingress protection	IP66
Cooling concept	Intelligent fan-cooling
Max. operation altitude	3000 m
Grid connection standard RD	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/ 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022; Brazil (75K: ORDINANCE (PORTARIA) NO.140, ORDINANCE NO. 515; 100K/125K: NBR 16149, NBR 16150, IEC 62116)
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

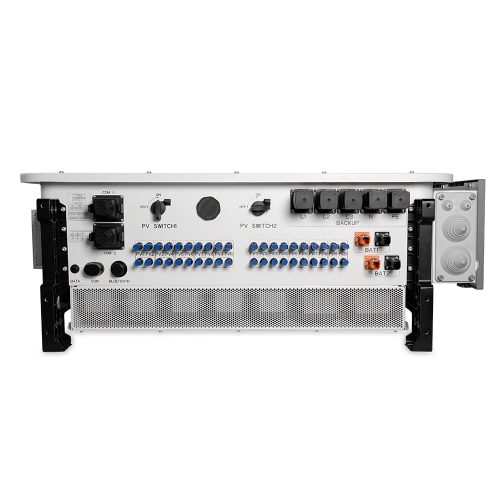

Features
PV connection	MC4 Quick connection plug
Battery connection	Terminal connector
AC connection	Terminal block
Display	7.0″ LCD display & Bluetooth + APP
Communication	CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN
