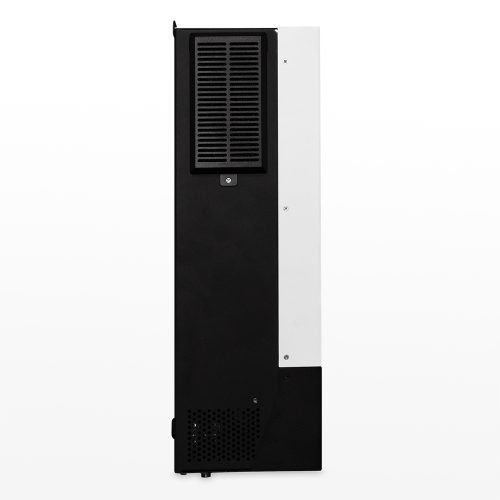

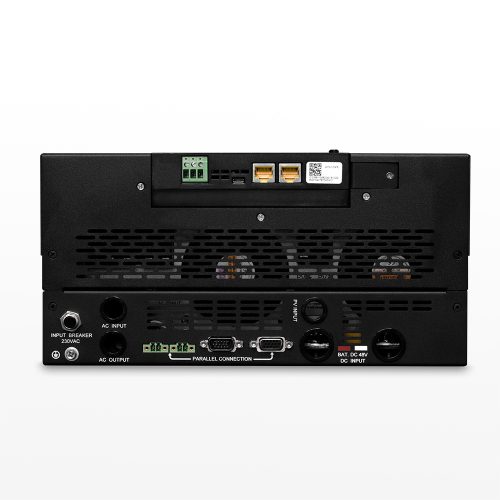

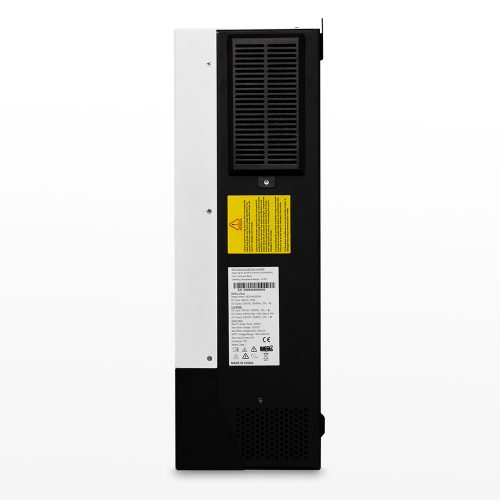

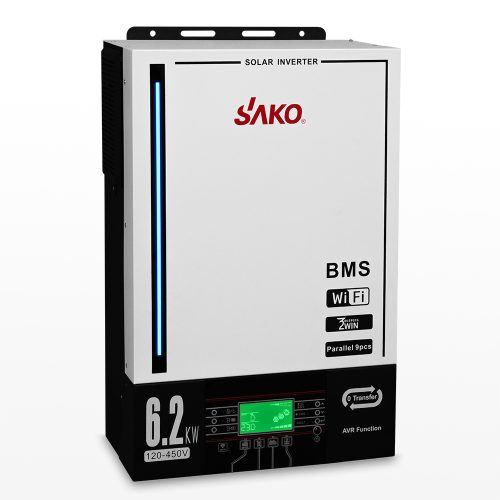

SUNPOLO-KING 6.2KW Off Grid MPPT Solar inverter

120A MPPT solar charger inside, max pv input 6000W (27A)
Optional for bypass mode or AVR mode when there is AC
Optional for parallel operation up to 9 units
With BMS for lithium battery communication,Compatible with Lead acid, AGM, Gel, ﬂooded, tubular,LiFePo4.
Movable LCD.
Various communication such as USB/RS232/RS485(BMS)/dry contact/WIFI.

Model No.	4.2KW	6.2KW
Max. PV Input Power	5000W	6000W
Rated AC Output Power	4200W	6200W
PV Input (DC)
Nominal DC Volt/Max DC Voltage	360Vdc/450Vdc
Start-up Voltage/Initial Feeding Voltage	120Vdc
MPPT Voltage Range	120-430Vdc
Max. Input Current	27A
Output (AC)
Nominal Output Volt	230Vac, Single Phase
Output Voltage Range	230Vac±5% （nline mode）or 110-280Vac (ECO Mode)
Transfer Time	Line mode–Battery mode 0ms, Inverter–Bypass 4ms
Nominal Output Current	17.4A	27A
Power Factor	1
Eﬃciency
Max. Conversion Eﬃciency (DC/AC)	93%(Peak Eﬃciency)
AC Input (AC)
AC Start-up Voltage/Auto Restart Volt.	120Vac-140Vac/180Vac
Acceptable Input Voltage Range	110-280Vac
Max. AC Input Current	30A	40A
Battery & Charger
Battery Type Supported	AGM, Gel, ﬂooded, tubular, LiFePo4
Battery nominal voltage	24Vdc	48Vdc
Max Solar Charge Current	120A
Max AC Charge Current	120A
Max Total Charge Current	120A
Physical
Products Dimension,D X W X H (mm)	468x295x140 mm	468x295x140 mm
Packing Dimension,D X W X H (mm)	530x377x225 mm	530x377x225 mm
Product Net Weight(Kg)	12.0Kg	12.3Kg
Product Gross Weight(Kg)	13.5Kg	13.8Kg
Parallel functions Optional	Yes, optional, max. 9pcs
Communication Interface	USB/RS232/RS485(BMS)/dry contact/WIFI.
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10℃ to 50℃
Storage Temperature	-15℃ to 60℃
Enclosure	IP20
