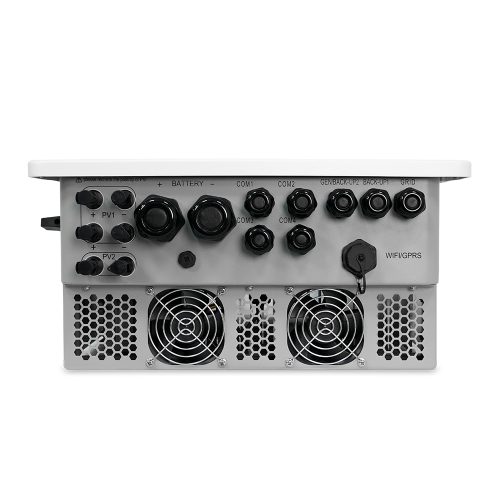

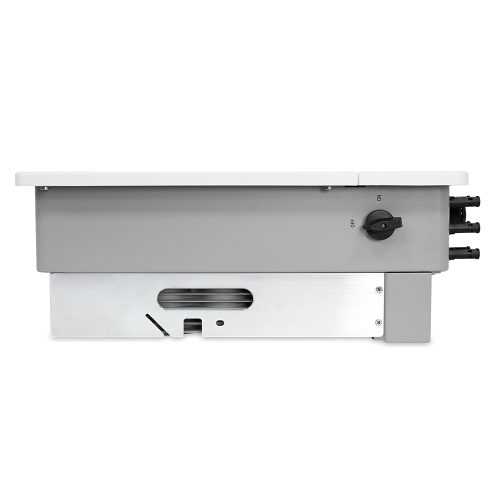

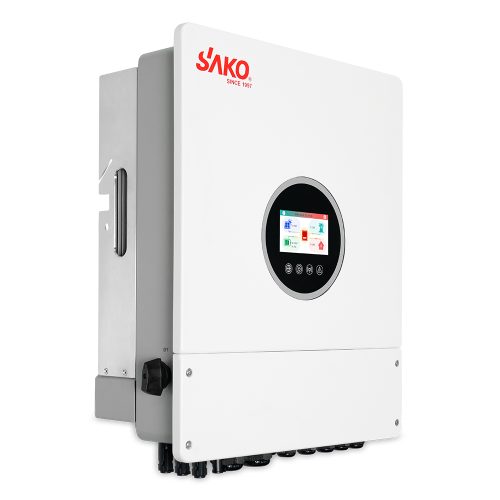

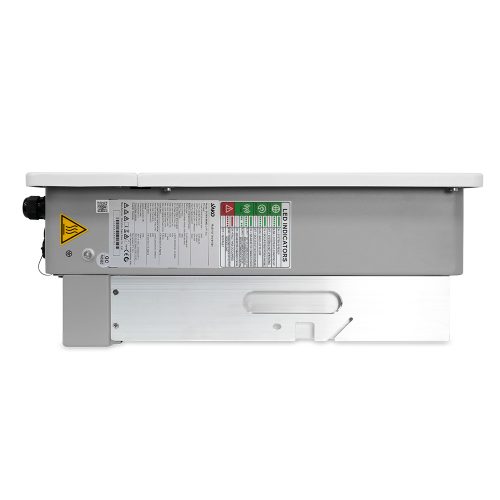

IP66 SUNIN-8KM2-L1P3-EU Hybrid solar inverter
| Product Models | SUNIN-6KM2- L1P1-ATEU | SUNIN-8KM2- L1P1-ATEU | SUNIN-10KM3- L1P1-EU | SUNIN-12KM3- L1P1-EU |
|---|---|---|---|---|
| Battery Input Parameters | ||||
| Battery Type | Lithium or Lead-acid Battery | |||
| Rated Battery Voltage (V) | 48V | |||
| Maximum Charging Voltage (V) | ≤60(configurable) | |||
| Maximum Charging/Discharging Current (A) | 125A | 190A | 220A | 250A |
| PV Input Parameters | ||||
| Maximum DC Input Power (W) | 12000W | 16000W | 18000W | 20000W |
| Maximum DC Input Voltage (V) | 500V | |||
| MPPT Voltage Range (V) | 150~450V | |||
| Start-up Voltage(V) | 125V | |||
| Maximum Input Current(A) | 20A/20A | 30A/18A | 32A/32A/32A | 32A/32A/32A |
| Number of MPPT Trackers | 2 | 2 | 3 | 3 |
| AC Output Parameters (Grid-tied) | ||||
| Maximum Apparent Output Power (VA) | 6600 | 8800 | 11000 | 13200 |
| Rated Output Voltage (V) | 220/230V | |||
| Rated Output Frequency (Hz) | 50/60Hz | |||
| Maximum Output Current (A) | 30A/28.7A | 40A/38.2A | 50A/47.9A | 60A/57.4A |
| Output Power Factor | 1(0.8 leading ~ 0.8 lagging) | |||
| AC Output Parameters (Off-grid) | ||||
| Rated Output Power (W) | 6000 | 8000 | 10000 | 12000 |
| Peak Output Power (W) | >200%,15sec | |||
| Rated Output Voltage (V) | 220/230V | |||
| Rated Output Frequency (Hz) | 50/60Hz | |||
| Rated Output Current (A) | 26.1A | 34.8A | 43.5A | 52.2A |
| Efficiency | ||||
| Max. Efficiency (PV) | 98% | |||
| Max. Efficiency (Battery) | 94.5% | |||
| European Efficiency | 97.5% | |||
| Protection | ||||
| PV Reverse Polarity Protection | Integrated | |||
| PV Insulation Resistance Detection | Integrated | |||
| Residual Current Detection | Integrated | |||
| Output Overcurrent Protection | Integrated | |||
| Output Short-circuit Protection | Integrated | |||
| Output Overvoltage Protection | Integrated | |||
| General Parameters | ||||
| Operating Temperature (°C) | -40~60°C(derating above 45°C) | |||
| Storage Temperature (°C) | -30~65°C | |||
| Relative Humidity | 0~95% | |||
| Operating Altitude (m) | ≤4000(derating above 2000m) | |||
| Cooling Method | Intelligent Forced Air Cooling | |||
| Noise (dB) | <55dB | |||
| Weight (kg) | 21.5kg | |||
| Dimensions (W × H × D mm) | 198*427*554mm | |||
| IP Rating | IP66 | |||
| Topology | High-frequency Isolation (Battery Side) | |||
| Safety / EMC Certification | IEC62109, IEC61000, IS16169 & IS16221(BIS) | |||
| Grid Compliance | IEC61727, EN50549-1, VDE-4105, NRS-097-2-1, OVE-Richtlinie R25, UNE217001/2, Ordinace No.140 | |||
| Other Certifications | IEC61683, IEC62116, EN50530, IEC60068 | |||
