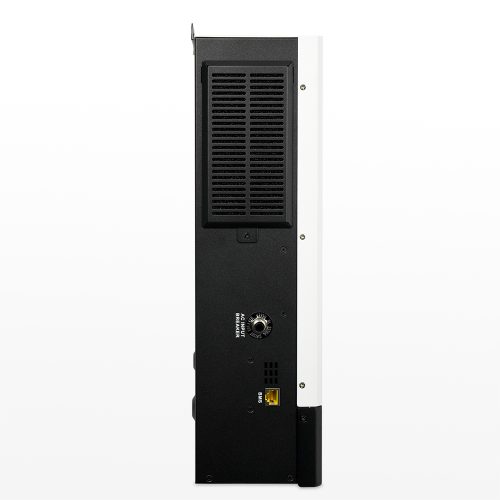

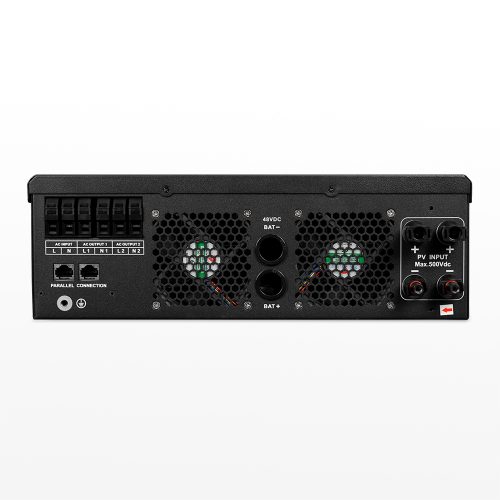

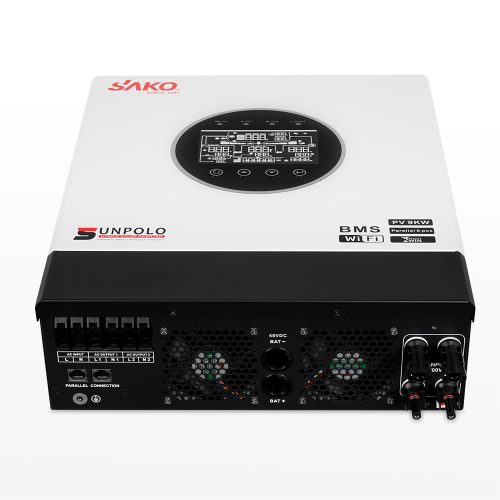

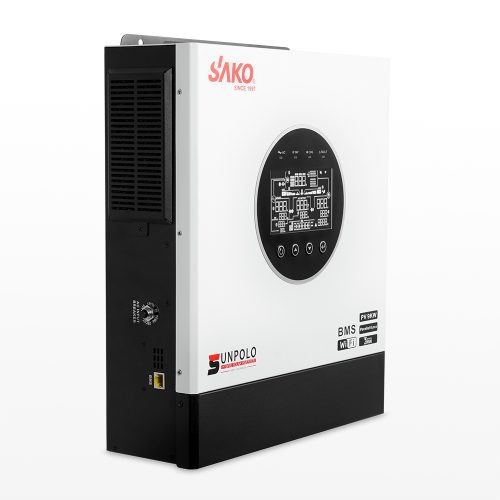

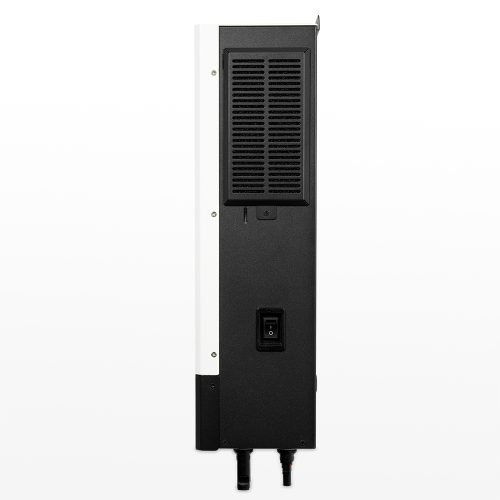

SUNPOLO – 6KW On &Off Grid MPPT Solar Inverter

Features:

Smart battery management. Compitable with diﬀerent types of batteries: Lead acid, AGM, Gel, ﬂooded, tubular,LiFePo4
Two independent AC power sources (Utility + generator) connected and switched automatically（grid power get the priority）
Built-in Remote WIFI for mobile monitoring(Android/IOS)
Wide PV input range (Up to 500Vdc), support no battery workin during the day time.
On grid and oﬀ grid solar inverter, support self-consumption and feed into the grid.
Dual outputs (L1/L2) for smart load management for 6K/12K
120/160/250A MPPT solar charger inside, max pv input (2*27A,Max.40A)
Built-in BMS
Parallel up to 6 units

Send Inquiry Chat Now Download

Description
Reviews (0)

Parameters of the SUNPOLO 6KW Hybrid Solar Inverter

Model	SUNPOLO-6KW	SUNPOLO-12KW	SUNPOLO-14KW
The rated power	6000W	12000W(PV+BAT)	14000W(PV+BAT)
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC (UPS), 90-280VAC (Appliances)
Frequnecy Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)	230VAC ± 5%	230VAC ± 5%	230VAC ± 5%
Surge Power	12000VA	24000VA	28000VA
Power factor	1	1	1
Eﬃciency(Peak)	＞94%	＞94%	＞94%
Transfer Time	10ms (UPS), 20ms (Appliances)	10ms (UPS), 20ms (Appliances)	10ms (UPS), 20ms (Appliances)
Wave form	Pure sine wave	Pure sine wave	Pure sine wave
No Load Power Consunmption	＜30W	＜30W	＜65W
BATTERY
Battery voltage	48VDC	48VDC	48VDC
Low battery alarming voltage	44.0VDC	44.0VDC	44.0VDC
Low battery cut oﬀ protection voltage	42.0VDC	42.0VDC	42.0VDC
Low battery recovery voltage	46.0VDC	46.0VDC	46.0VDC
Floating Charge Voltage	56.0VDC	56.0VDC	56.0VDC
Overcharge Protection	64.0VDC	64.0VDC	64.0VDC
MPPT SOLAR CHARGER & AC CHA	RGER
Maximum PV Array Power	9000W	15000W	18000W
MPPT Range Operation Vol	60-450VDC	60-450VDC	90-450VDC
Maximum PV Array Open Circuit Vol.	500VDC	500VDC	500VDC
Number of MPPT trackers / Max output current	120A	160A	250A
Maxmum AC Charge Current	120A	160A	210A
Maxmum Eﬃciency	98%	98%	98%
BEST PANEL CONFIGUTATION
Maximum PV Array Power	9000W	15000W	18000W
Best Panel conﬁguration	600W/16PCS/8S2P	550W/27PCS/9S3P	600W/28PCS/7S4P
CHARACTERISTIC
Number of AC output	2
Display	LCD&APP
Communication Interface	RS485(BMS) communication port
Parallel Capabillty	supports 6pcs
PHYSICAL
Packing size, DWH(mm)	500415186mm	595515210mm	725515195mm
N.W. kg	8Kg	15Kg	18.0Kg
G.W. kg	9.5Kg	16.5Kg	20.5Kg
Communication Interface	RS485(BMS) communication port
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature Range	0°C to 55°C
Storage Temperature	-15°C-60°C
